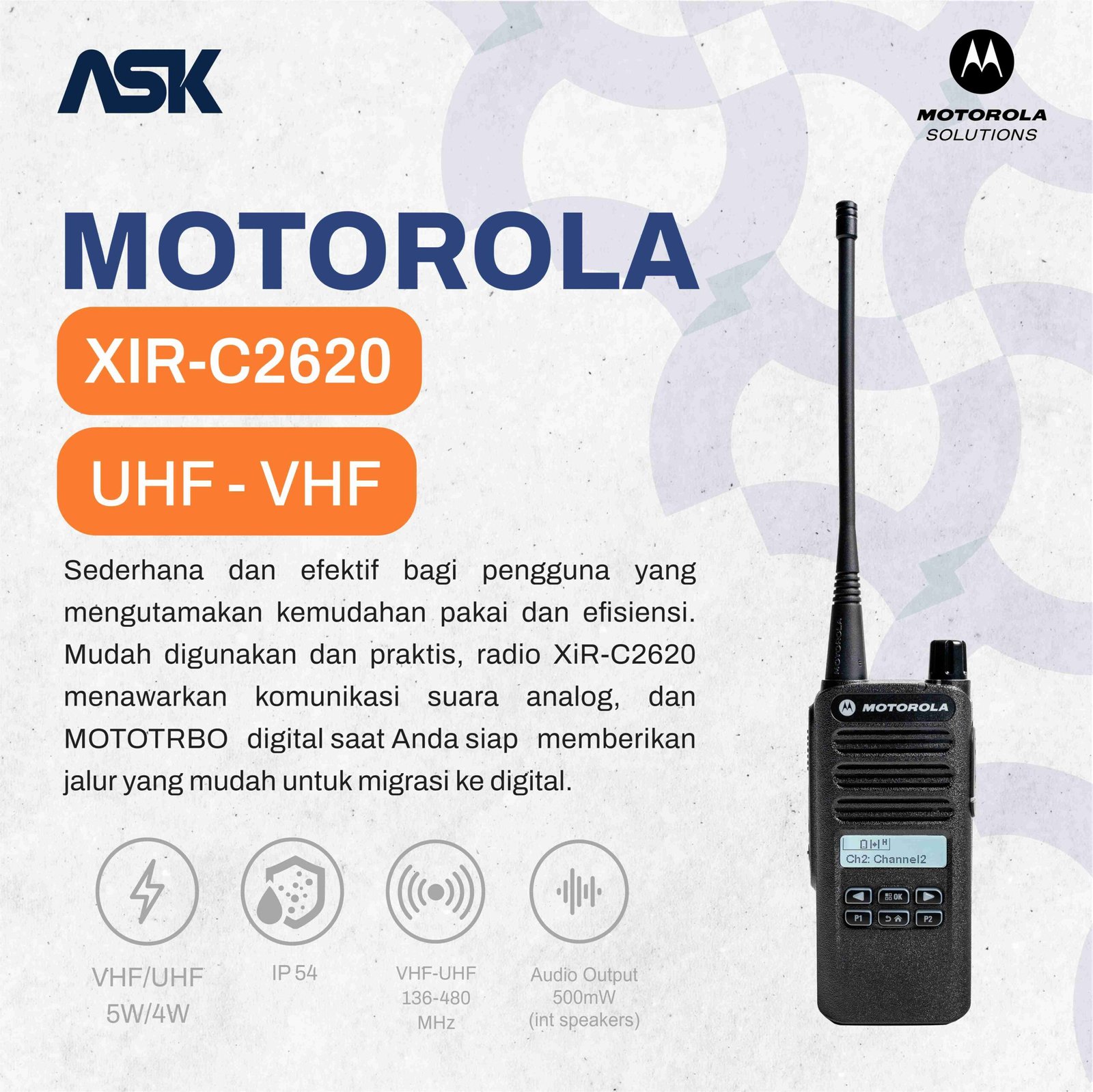

Motorola Handy Talkie XIR-C2620

Sederhana dan efektif bagi pengguna yang mengutamakan kemudahan pakai dan efisiensi. Mudah digunakan dan praktis, radio XiR-C2620 menawarkan komunikasi suara analog, dan MOTOTRBO digital saat Anda siap — memberikan jalur yang mudah untuk migrasi ke digital.

Kelengkapan:
– Antena VHF/UHF
– Baterai (PMNN4476A)
– Belt Clip (HLN9844A)
– Charger (PMLN5228AR)

Fitur-Fitur:
– Analog / Digital Voice Communications
– Voice Announcement
– Dual Capacity Direct Mode
– Channel Capacity: 160
– Pre-programmed Text Messaging
– Transmit Interrupt
– DMR Standards Compliant
– IP54
– IP Site Connect

Specs:
Frekuensi:
– VHF: 136-174MHz
– UHF: 350-400 / 403-480MHz
Dimensi: 120x55x36.5-41.7mm
Berat: 295g (slim Li-Ion 1600mAH) / 300g (Li-Ion 2200mAH) / 360g (NiMH 1400mAH)
Power Supply: 7.5V

Receiver:
– Channel Spacing : 12.5kHz/25kHz
– Frequency Stability(-30C,+60C,+25C Ref) : 0.5ppm
– Analog Sensitivity(12dB SINAD) : 0.3uV/0.22uVtyp
– Digital Sensitivity(5% BER) : 0.25uV/0.19uVtyp
– Intermodulation : 70dB
– Adjacent Channel Selectivity : 45dB*/70dB**
– Spurious Rejection : 70dB
– Rated Audio : 0.5W(Int)
– Audio Distortion @Rated Audio : 5%(3%typ)
– Hum and Noise : -40dB*/-45dB**
– Audio Response : TIA603D
– Conducted Spurious Emissions : -57dBm

Transmitter:
– Power : 5W VHF | 4W UHF
– Channel Spacing : 12.5kHz/25kHz
– Frequency Stability : 0.5ppm
– Modulation Limiting : 2.5kHz*/5.0kHz**
– FM Hum & Noise : -40dB* / -45dB**
– Conducted / Radiated Emission : -36dBm <1GHz / -30dBm >1GHz
– Adjacent Channel Power : 60dB*/70dB**

4FSK Digital Modulation:
– Data* : 7K60F1D & 7K60FXD
– Voice* : 7K60F1E & 7K60FXE
– Both* : 7K60F1W

Digital:
– Vocoder Type : AMBE +2
– Protocol : ETSI TS 102 361-1, -2, -3
